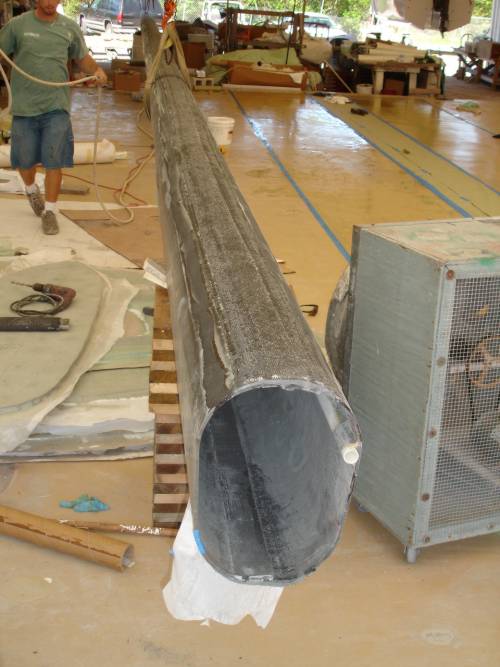

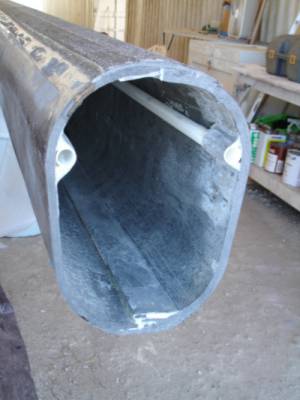

Here at MTI / Constellation Yachts, we have developed a system to build high-tech carbon fiber masts, booms and spars to any length, size and strength required. We custom engineer every spar to the exact specifications given by the vessels design. As a result these carbon spars are up to 30% lighter and much stiffer then an equivalent aluminum rig.

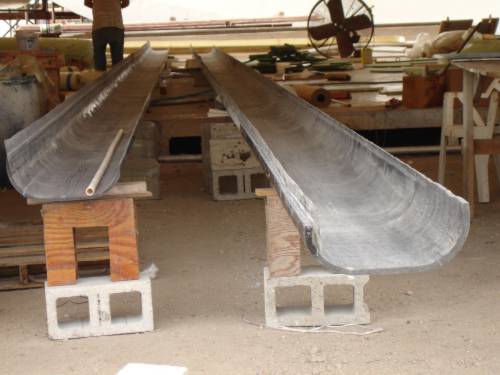

Each carbon fiber mast is laid-up in a female mold. We use a vacuum assisted resin transfer method to assure an optimal wet-out of the fibers. The resin utilized is a specially formulated epoxy which we combine with unidirectional and biaxial carbon fiber. With this technique we achieve a ratio of 60% fiber to 40% resin.

Advantages of carbon fiber masts and spars:

• Up to 30% weight reduction resulting in:
  • Better performance due to less displacement
  • Better performance due to less heel angle
  • Less roll and pitch of the vessel
• Up to 50% more stiffness resulting in:
  • Better sail shape
  • Less stays needed to hold up the mast
  • Eliminate or reduce the need for diamond rigging
  • Less windage due to smaller diameter
