“CASSIOPEIA”

LUXURY CATAMARAN SAILING YACHT





Catamaran Sailing Yacht For Sale



The "CASSIOPEIA" is a 70 ft luxury live aboard catamaran.  The boat was designed by Walter Schurtenberger.  She is a very fast, comfortable and spacious long distance cruiser.  She was designed with blue water passage making in mind and is equipped every imaginable commodity.  This is a very high tech boat built with the most modern lightweight materials (carbon fiber and glass fiber over foam core and honeycomb core using only epoxy resins).  This yacht is capable of sailing in any waters or sea conditions of the world or around the world.

Specifications:



LOA

70 feet

21.34 meters

BOA

34 feet

10.36 meters

DISP.

54,000 lbs.

24,500 kg

SAIL

2752 ft2

256 m2

POWER

TWIN 125 bHp DIESEL

TWIN 93.2 bkW DIESEL

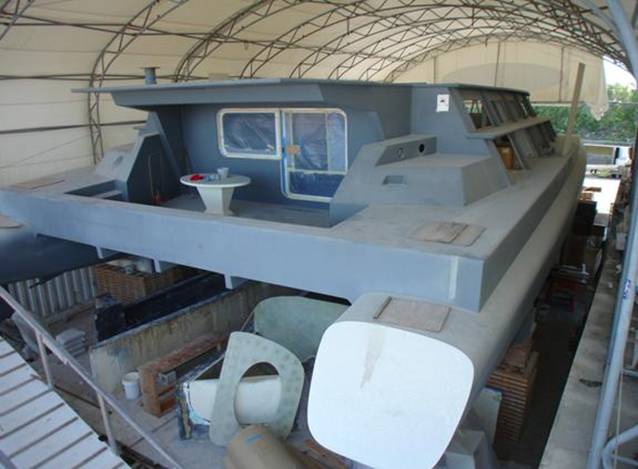

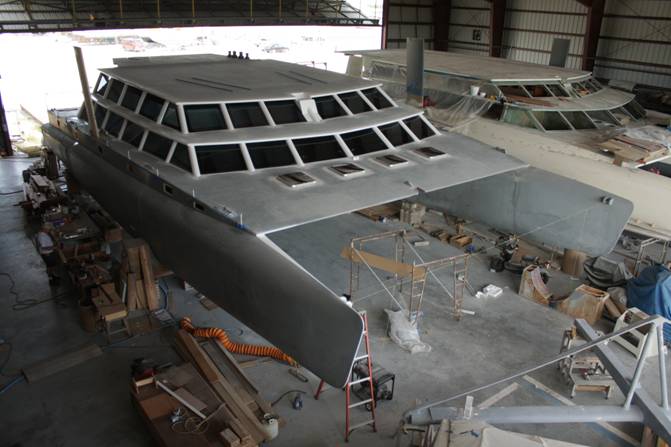

Current Project Status:

This yacht is currently in the finishing phase and is over 90% completed.  All of the structural work is finished, the engines and the steering are installed, and the standing and running rigging as well as the sails and hardware are finished.

We are currently working on the completion of the systems installation, exterior paint and interior finish.

At this stage of the project this is the perfect opportunity for a new owner to customize and outfit this yacht exactly to his personal wishes.





For more information please email or call:



MULTIHULL TECHNOLOGIES INC.

6811 SHRIMP ROAD, KEY WEST, FL 33040

TEL: (305) 296-2773

FAX: (305) 296-2523



Or contact



Walter Schurtenberger    cell # 305 797 7396

Walter@ConstellationYachts.com





For photos of the entire construction please visit our web page:

http://constellationyachts.com/album-carlo.html



DETAILED SPECIFICATIONS



Green Boat Option:



We have the option to equip this vessel as a “Green Boat”.  This means that all equipment on the vessel and all appliances would be running on solar power and wind power without the need to run a generator.  Multihull Technologies has been specializing in the design and installation of environmentally friendly equipment for many years.



Dimensions:

LOA:                           21.65 meters / 70 feet (with bowsprit)

LOA:                           20.42 meters / 67 feet (hulls only)

Beam:                         10.36 meters / 34 feet

Draft:                           0.9 meters / 3 feet

Mast Height:              27 meters / 88.5 feet

Displacement:           24,500kg / 54,000lbs

Sail Area:                   Total area upwind                 255.7 square meters / 2752 square feet,

                                    Total area downwind            399.7 square meters / 4302 square feet

                                    Mainsail                                  139.2 square meters / 1498 square feet

                                    Jib / Solent                             82.4 square meters / 887 square feet

                                    Staysail                                  34.1 square meters / 367 square feet

                                    Spinnaker (optional)             144 square meters / 1550 square feet

Tank capacities:        Diesel Fuel 1 fwd                  1003 liters / 235 Gallons in each hull

                                    Diesel Fuel 2 aft (optional)   1722 liters / 455 Gallons in each hull

                                    Fresh Water                           1060 liters / 280 Gallons in each hull

                                    Gray Water fwd                     265 liters / 70 Gallons in each hull

                                    Black Water fwd                    189 liters / 50 Gallons in each hull

                                    Black & Gray Water aft         416 liters / 110 Gallons in each hull





Construction Specifications:

Hulls:                           Carbon fiber and glass fiber combined with AirEx foam core, 1¼” hull thickness

Decks:                        Glass fiber and carbon fiber combined with Plascore honeycomb core, 1” deck thickness, 2” cabin roof thickness

Structure:                    Glass fiber and Carbon fiber combined with AirEx foam core, 1½” bulkhead thickness

Fwd Crossbeam:      Carbon fiber beam with carbon fiber seagull striker and carbon fiber tensile strap, carbon fiber bowsprit

Rig:                             Cutter rig with 2 roller furlers and 2 reefs in mainsail

                                    Carbon fiber Mast, Carbon fiber Boom

Sails:                          Mainsail (fully battened), Solent & Staysail Radial cut 13-oz PBO cloth, made by Calvert Sails, special windlass to hoist mainsail, Stow-Away Main Sail covers & Lazy-Jacks, Technora Halyards, Sheets & Vangs

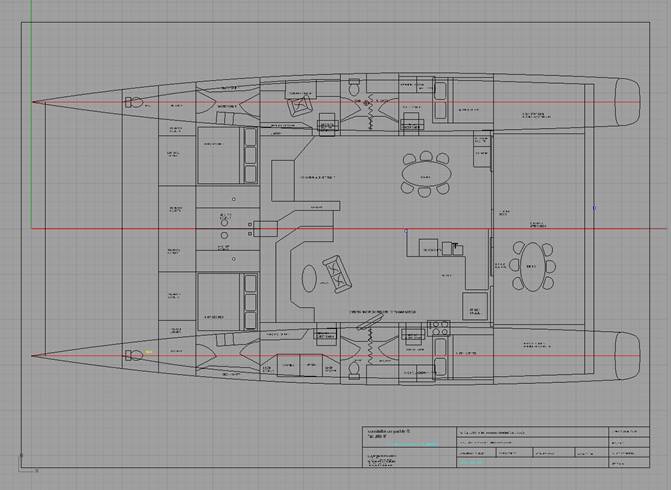

Interior Lay-out:





Main Deck:

Large Salon, Dining Area, Galley and Nav Station



After Deck:

Large Covered After Deck with Table and Seating



Fore deck;

Fwd Anchor Lockers & Storage Lockers.



Port Hull:

1 Master Cabin with Head, Shower, Office, Hanging Locker, Closet and Vanity

1 Guest Cabin with Head, Shower, Hanging Locker, Closet and Vanity

Engine Room and Lazrette.



Starboard Hull:

2 Guest Cabins with Head & Shower, Hanging Locker, Closet and Vanity

Laundry Room

Engine Room and Lazrette

Equipment and Finish:



Hardware:

  • 2 x 125 Hp Yanmar Diesel
  • 2 Helm Stations with Hynautic Wheel steering
  • 21Kw Phasor generator
  • 7 Harken winches
  • 2 Harken roller furling
  • Harken bat car system
  • 1 Harken main sheet track
  •  4 Harken jib sheet tracks
  • Harken blocks & sheaves
  • 2 Anchorlift anchor windlass
  • 1 Anchorlift mainsail windlass
  • 2  66 lbs Delta (both with 150’ chain)
  • 8 Lewmar Hatches





Interior:

  • The vessel’s interior is entirely finished in Honduras Mahogany and Anegre.  All flooring and horizontal surfaces are bamboo. All overhead and ceilings are finished with marine grade fabric.
  • The entire vessel is fully air-conditioned and heated with individual thermostats and air handlers in each cabin
  • Salon with upholstered settee, marble or granite coffee table, custom arm chair & optional 40” LCD TV that retracts into ceiling
  • Galley with marble or granite counter tops, 36” household size Refrigerator / Freezer with ice maker, 4-burner Bosch electric stove, Bosch dishwasher & double sink, lots of storage
  • Marble or granite dining table & 6 custom chairs
  • Nav Station with full size chart table and large instrument board
  • 1 Master Cabin with king size bed, hanging locker, drawers & vanity, shower with glass sink and 6-jet shower tower, head with Duo-Flush system
  • Office with desk, filing cabinets & library adjacent to master cabin
  • 1 Guest Cabin with king size bed, hanging lockers, drawers & vanity, shower with glass sink and 6-jet shower tower, head with Duo-Flush system
  • 2 Guest Cabins with queen size bed, hanging lockers, drawers & vanity, shower with glass sink and 6-jet shower tower, head with Duo-Flush system
  • Laundry room with Bosch washer & Bosch dryer, linen lockers and ironing surface.
  • LED lighting throughout the boat
  • Pressure Water System hot & cold



Electronics (Owner’s Choice of Brands):

  • GPS with chart reader
  • Radar
  • Depth Sounder
  • Wind instruments
  • Auto Pilot
  • 2 KHG Electronic Compass (no variation)
  • VHF Radio





Owner:



Multihull Technologies Inc.

6811 Shrimp Road

Key West, FL 33040

305 296 2773





Note:



This yacht’s interior and exterior can still be completely customized any way the client wishes; i.e. colors, upholstery, appliances, entertainment center, lighting etc. Electronics can still be chosen to owner’s preference.





LIST OF OPTIONAL EQUIPMENT FOR SAILING YACHT "CASSIOPEIA"







Green Boat Option:







4 Superwind Wind Generators





28 Solar Panels





2 Balmar High Output Alternators 24VDC / 220 Amp





3 Charge Controllers





2 High Capacity Battery Banks 2400 Amp-Hour





2 5000 Watt / 240VAC Inverters





1 4000 Watt / 120VAC Inverter





2 100 Amp Battery Chargers









Sails & Rigging:







Spinnaker with ATN sock





Install 2 additional Harken tracks with cars for spinnaker sheets





Gennacker with Harken roller furler





Install 2 additional Harken tracks with cars for gennaker sheets





Storm sail on inner forestay





Electric Harken Winches (conversion)





Logo or design on sails





Composite lightweight rigging (upper, middle and lower shrouds)









Interior Finish:







Additional deck hatches over salon





Additional deck hatches over master beds





Mosquito screens and black-out screens on salon hatches





Mosquito screens and black-out screens on master bed hatches





Mosquito screens on portholes





LED Night Star Ceiling with constellations of Owner's choice in Main Salon





Décor panel above dining table, coffee table and galley counter wit mahogany trim and indirect lighting





Deck prisms for additional light in cabins









Entertainment Center:







40 Inch LCD TV with lift into ceiling





Blue Ray DVD player with surround sound





Computer for music and movie library









Wet Bar:







Wet bar with sink and faucet





Glass rack, bottle rack





Ice maker





Booze dispenser with 6 push buttons









Navigation Area:







Tank monitoring system





Battery monitoring system





Camera monitoring for engine room & after deck











Helm stations:







Seating for 2 People at both Helm stations





Awning over both helm stations





Lights under Awnings at both Helm stations









Engine room:







Automatic fire extinguishing system & engine shut down





Automatic oil change system





Folding propeller Gori or Flexofold





Fuel fill overflow protection









Electrical:







Upgrade shore power from 50 Amp to 100Amp





Glendenning Shore Power Reel





Large household battery bank





Dimmer switches in cabins





Automatic lights inside lockers





Underwater lights behind after deck





Indirect lighting around parameter of inside drop-ceiling





Courtesy lights in all steps to cabins









Electronics:







VHF at chart table and at chart table both helm stations





GPS  at chart table and at chart table both helm stations





Radar at chart table and at chart table both helm stations





Wind, depth, speed instruments at chart table and  both helm stations





Satellite weather receiver





1 or 2 LCD Info screen





Autopilot Raymarine at both helm stations and at chart table





Infrared night vision





Satellite receiver for television





Inmersat satellite telephone









Systems







Tender Lift on roof over after deck





Tender crane on fore deck





Additional 2 aft fuel tank and plumbing





Watermaker ( Spectra) 1000 Gal/day





Fold-out transom with steps and bathing ladder on port side





Fold-out transom with  dinghy dock and steps on Stbd side





Deck lights mounted on mast





Sewage treatment plant





Deck wash with 4 quick-connect outlets





Deck shower hot & cold





Dive compressor
